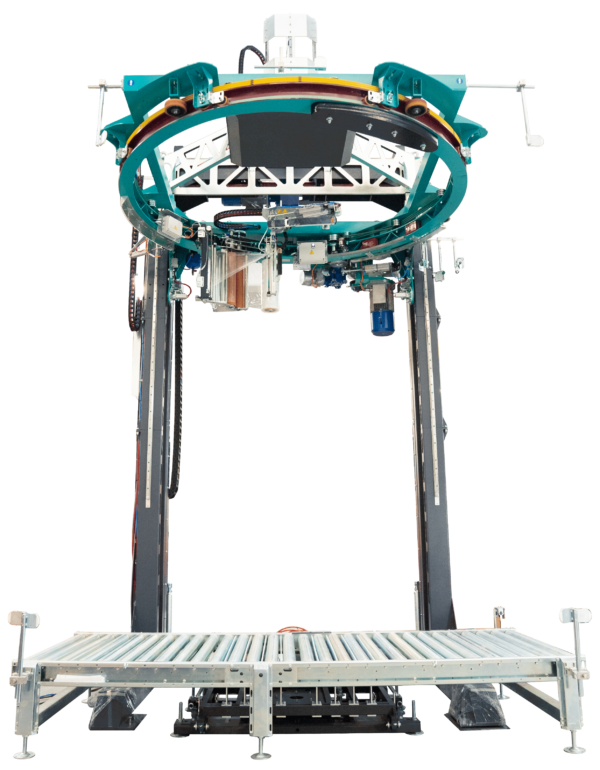

Omega ring wrapper

Omega is designed for the highest packing rates on the market. With more than 100 pallets / hour, this is a machine that meets the highest standards on the market. Regarding construction, the ring is supported by two columns that ensure the highest performance. It is in the ring where Omega differs from the rest. While the rest of the machines on the market have brushes and electronic elements, Omega dispenses with all of this to reduce maintenance costs, while maintaining the expected performance.

Ring wrapper – maximum performance

The equipment required for an end of line with an Omega must be of a very high standard in every way. The touch control desk allows management of all elements, and all this is installed with a metal cage that protects other operators from the movements of the machine.

The performance of the Omega can be increased with the addition of a second spool, making it the Double model. More film, more speed, more efficiency. In addition to this, you can also have a series of optional items that will give more versatility to the machine, from the automatic incorporation of corner pieces to a grip and cut system that allows the machine to weld film at the end of an application.

Optional items

Among the different variations of the machine, you can have:

Conveyor at different height
Circular upper clamp
Rectangular upper clamp
ROPE creation system
Welding system (grip and cut)
Automatic corner piece installation
Optional second coil (Omega Double)

Videos Catalogue Quotation

Fully automatic ring wrapping machine
Intuitive touch-screen control panel
Adjustable number of reinforcement laps
Input/output roller conveyor
Automatic pallet height detection
Maximum arm rotation speed 70rpm
CE safety protections
Protective fence with security gate
Adjustable carriage speed up/down
Soft start to avoid load dump
Reinforcement laps at specific points
Adjustable film tension from control panel
Start/finish packing at specific height
Pallet elevator for better wrapping
Film consumption reading (PRS, PS)
Possibility to use jumbo reels (40kg)
Pallet cover function (waterproofing)
Automatic edgebander
99 different programs to save
Integrated clamp and clean cut unit
Automatic cord system
Film sealing clamp cutting system
Rope system to stabilize load
Limited stroke pallet presser

Ring wrapper: maximum performance

The equipment needed for an Omega end-of-line system must meet high standards. About touch control desk, this manages all elements, and a protective metal cage ensures operator safety during machine operation.

Omega optional items

Among the different variations of the machine, you can have:

Conveyor at different height
Circular upper clamp
Rectangular upper clamp
ROPE creation system
Welding system (grip and cut)
Automatic corner piece installation
Optional second coil (Omega Double)

It seems to be suitable only for the brave, anyway, ask us if you are up to the challenge of installing a marvel like this in your end of line, do not hesitate to contact us or take a look at our videos.

Embalaje cantoneras - Omega Atlanta Stretch

CORNER PIECE APPLICATION

Pallet reinforcement is a requirement for many warehouses. Omega adds additional strengthening with the automatic application of corner pieces before finishing the packaging.

Envolvedora de palets - Atlanta Stretch - Revolution

UPPER PRESSER

There are two clamps - circular or rectangular - that allow the load to be supported to prevent it from overturning during packaging.

ROPE SYSTEM

If you want to secure your load, Omega allows you to create a rope from the same head. Adjustable height to apply this reinforcement on a pallet.

GRIP AND CUT SYSTEM

The Omega can incorporate a grip and cut system that will allow you to cut the film at the end of the wrapping cycle. This system cuts and fixes the film to create a secure and tear-proof packaging.
